Spider ILD01



The Spider ILD01 mower is designed for fully professional use.

It can be used to mow sloping and indented terrains and areas with restricted access for manoeuvring or where lightweight mowers are required.

It is suitable for extensive and intensive mowing of medium-large areas.


With an area coverage up to 3,000 m2/hour, the SPIDER ILD01 can match the performance of 5 brush cutters at substantially lower operating costs.

Due to absence of physically demanding work the daily productivity is much higher compared to the manually operated machines as no compulsory work breaks are needed and there is no slowdown due to exhaustion.


The unique mowing deck is based on high-quality mulching and therefore no collection of grass is needed. Cut grass is evenly spread to the grass roots and serves as a valuable source of nutrients for further growth.

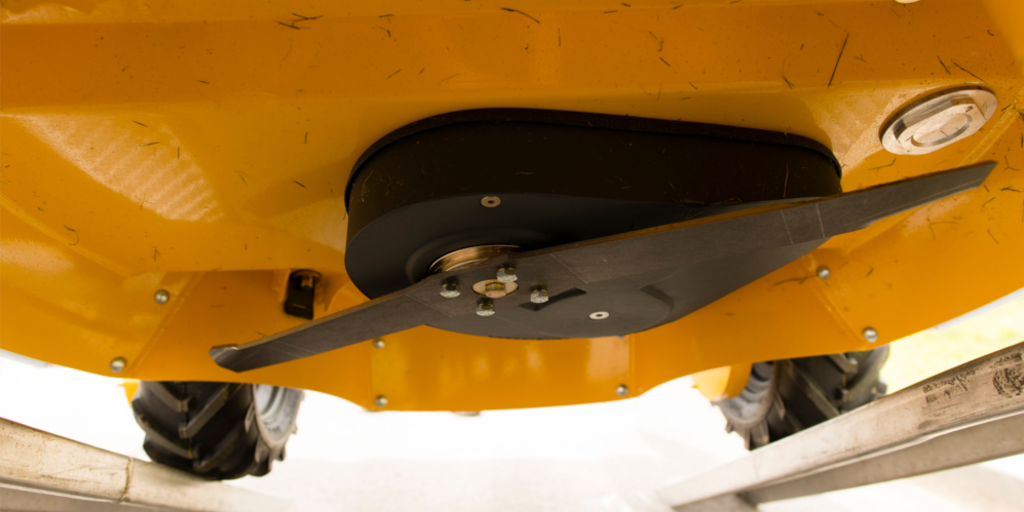

The SPIDER ILD01 is equipped with a one-blade mowing mechanism that ensures perfect mowing and precise mulching. The blade is made of special alloys that guarantee strength and sufficient flexibility in case of accidental impact on a fixed obstacle.


SPIDER mowers are exceptional pieces of equipment as they can be used for the mowing of fine and short grass as well as for rough mowing of heavy brush – all in the same setup! They can work on flat areas or on steepest slopes. One SPIDER mower can replace multiple specialised mowers.

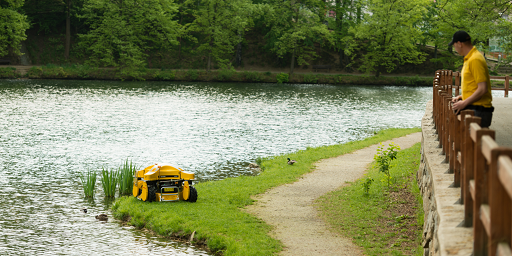

You’ll hardly be able to find a safer mower in the market. The remote control allows the operator to stay away from the working area of the mower, away from noise, fumes and vibrations.

Safety can be further enhanced by using the hydraulic winch, which stabilises the machine in extreme slopes. SPIDER ILD01 works safely in the toughest conditions.


4-cycle Kawasaki engine provides optimum productivity and maximum payback even in the toughest terrain due to dual element air filter and powerful lubrication system.

Performance:   11.3 kW (15 HP) / 3600 rpm

Oil Tank:          2.0 l

Number of Cylinders:   2

Displacement:  603 cm³


The remote control provides comfort, safety and precise control. The range of the remote control is 100m.

The following functions can be controlled remotely:

  • starting and stopping the engine
  • setting the speed mode (turtle/rabbit)
  • turning on and off the mowing device
  • adjusting the cutting height
  • Skid steering
  • changing the speed and direction
  • wheel rotation (360°)
  • activation of stabilizing winch
  • emergency shutdown of the entire system


The hydrostatic drive system ensures fluent speed regulation while perserving optimum management of the combustion engine.

Sensitive speed regulation and steering result in precise control of the mower, excellent operation efficiency and high safety.

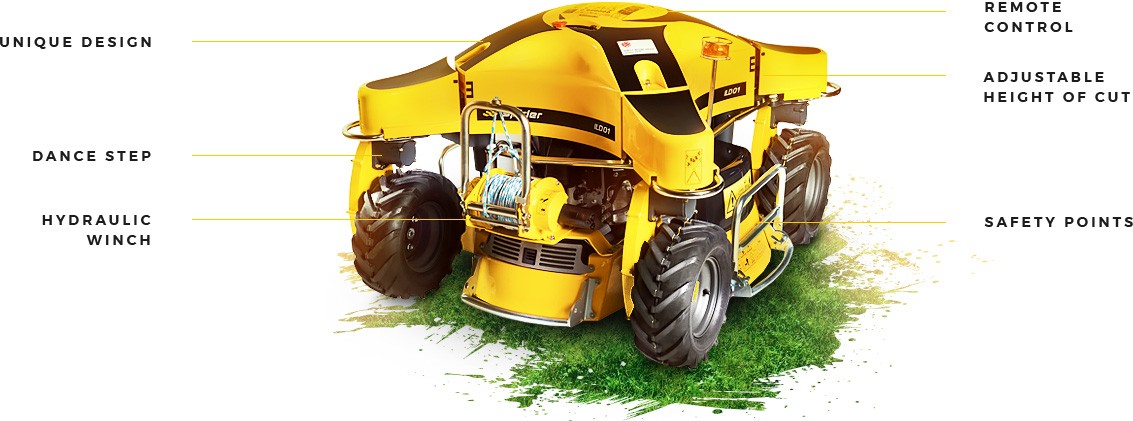

The patented drive system “Dance step” together with constant 4-wheel drive ensure fantastic manoeuvrability in all terrains, great climbing ability and gentle treatment of grass even in wet or soft terrain.


SPIDER ILD01 is equipped with the skid steering option. The steering system enable the zero-turn rotation of the mower around its vertical axis and significantly simplifies manipulation, especially in tight spaces or on turns.


To transport a Spider ILD01 mower we can offer a special trailer containing integrated pull-out ramps and a safety system securing the mower from any movement.

It can be easily and quickly transported in a wide range of vans and alternative trailers too.

Spider ILD01: Specifications


 Drive Unit
Engine Type Kawasaki FS541 V
Performance 18hp – 11.3 kW
Displacement 603 ccm
Ignition Electronic
Fuel Tank Capacity 12 Litres
Fuel Type Unleaded Petrol
 Drive System
Gear Hydrostatic
Oil Tank 6 Litres
Speed  0-6 kmh
Steering  360 degrees, 4-wheels
Wheels 16 x 6.50″
 Cutting System
Cutting Width 80cm
Cutting Height 6-11cm / 3-8cm
Clutch Electromagnetic
 Performance & Consumption
Performance up to 3000 m2/h
Fuel Consumption 2.5-3.5 Litres per hour
Climbing Ability 40 degrees – 55 degrees with hydraulic winch
Overall Length x Width 135.6cm x 120cm
Overall Height 91.3cm
Dry Weight 288 kg

Spider ILD01 Accessories

  • Low Height of Cut Range Kit
  • Easy Turn Leg
  • Bespoke Spider Trailer
