Spider eCross Liner

THE FIRST FULLY ELECTRIC SPIDER MOWER



Introducing the first fully electric version of the SPIDER remote-controlled mower.

The SPIDER eCROSS LINER stands out for its naturally emission-free, quiet operation and productivity comparable to the internal combustion engine version.

Naturally emission-free operation

The eCROSS LINER mower operation is totally emissions-free thanks to its fully electric drive.

The absence of produced emissions and quiet operation make the eCROSS LINER model the ideal solution for mowing in sensitive areas such as city parks, children’s playgrounds, residential areas or relaxation zones.

The sophisticated design allows you to easily tilt the mower into the service position on the side and save space during winter storage. You can also quickly and easily access the mowing deck and engine.

Powerful mulching system

The eCROSS LINER productivity is comparable to that of internal combustion engine version. The eCROSS LINER can easily handle the mowing of denser grass on the flat ground and on slopes as well.

Compared to the internal combustion engine version, the electric model is more agile and is equipped with a specially adapted mowing device, which does not require high power and guarantees excellent quality of mowing and mulching.

Energy efficiency

In the case of electric machines, energy efficiency is a crucial factor – every watt saved means energy that can be used for mowing itself.

The result is a record battery capacity, which ranges from 5-8 hours of continuous work per charge.

Not only the weight of the mower itself, but also its control system contributes significantly to energy efficiency. The weight factor was minimized by using aluminum alloys and eliminating unnecessary components. Further savings are achieved by the patented drive system, which enables the mower to work without limits in all directions, so that every movement becomes fully productive.

DRIVE SYSTEM

The SPIDER eCROSS LINER is equipped with a patented drive system that enables omnidirectional grass cutting without the need for complicated maneuvering. On land with a rapidly changing slope and where other machines move with great difficulty, the SPIDER mower is completely unbeatable.

The mower is equipped with a pair of synchronous motors, which ensure the drive of the machine (1,500 W) and the mowing system (2,800 W).

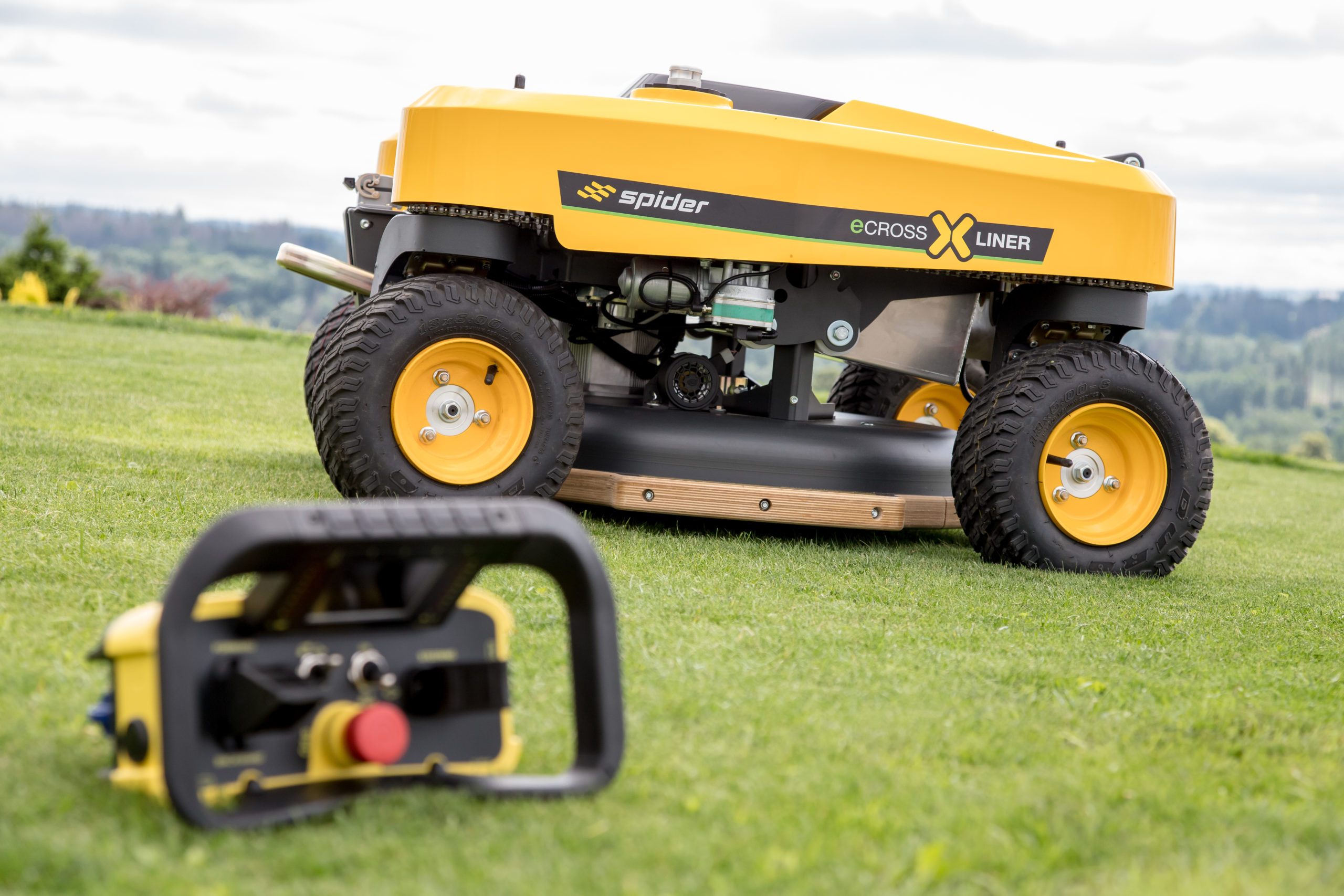

REMOTE CONTROL

The mower is controlled only via the remote control, thanks to which the operator is always at a safe distance from the machine and is not exposed to adverse vibrations or the risk of falling.

Following functions can be controlled remotely:

  • turning the mower on / off
  • change of direction and speed
  • switching on / off the mowing system
  • zero-turn rotation

Spider eCross Liner: Specifications

Power unit

DRIVE MOTORS Permanent magnet AC motors
ENGINE POWER 1 500 W (drive)

2 800 W (mowing system)

BATTERY TYPE Lithium-ion (NMC)
BATTERY VOLTAGE 50,4 V
OPERATING TIME 5–8 hours (depending on terrain conditions)

Drive system

STEERING SYSTEM Patented SPIDER mode (4WD, 360°)
ZERO-TURN Yes
SPEED 0 – 5 kph
WHEELS 13 × 5.00-6

Mowing system

MOWING WIDTH 65 cm
MOWING HEIGHT 4 – 10 cm

Performance

PRODUCTIVITY up to 2 500 sqm/h
CLIMBING ABILITY up to 35° (70 %)
SOUND PRESSURE LEVEL max. 89 dB
DIMENSIONS 98 × 111 × 60 cm
GROSS WEIGHT 182 kg
